Sample Probe Frequency and Stress Calculations
File
Open
Save
Print
Report generated by Instemi on Dec 4, 2024, 8:35:37 PM
Reference
Tag
Notes
Sample Probe Data
Material
A105 Carbon Steel
316 Stainless Steel
316L Stainless Steel
304 Stainless Steel
304L Stainless Steel
321 Stainless Steel
Hastelloy C276
Hastelloy C22
Alloy 20
Monel 400
Inconel 600
Super Duplex Stainless Steel
Duplex 2205 (S31803) Stainless Steel
Duplex 2205 (S32205) Stainless Steel

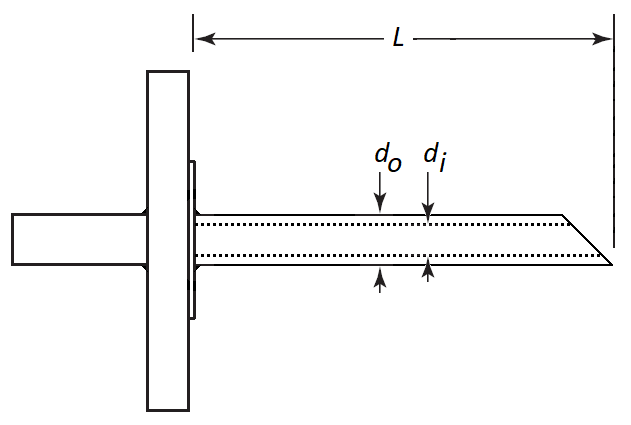

Unsupported Length
(L)
mm
in
Inner Diameter
(d
i
)
mm
in
Outer Diameter
(d
o
)
mm
in
Probe Density (ρ)
Use nominal value
Use
kg/m³
lb/ft³
lb/in³
Modulus of Elasticity (E)
Use nominal value
Use user-defined value
Elastic Limit (σ
e
)
Use nominal value
Use user-defined value
Piping Data
Nominal Size
DN
NPS
Schedule
Wall Thickness
mm
in
Piping specification not known yet
Piping Nozzle Data

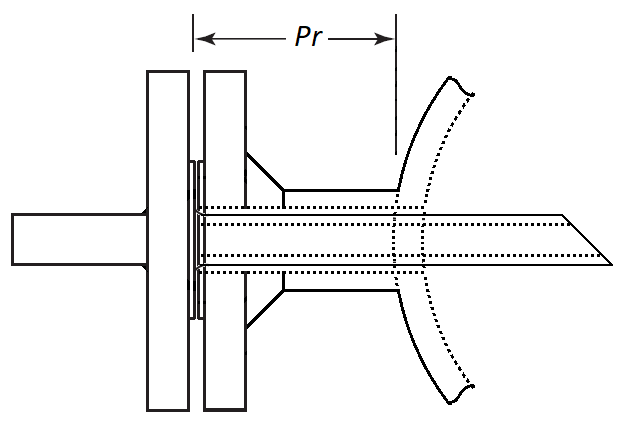

Projection Length
(Pr)
mm
in
Orientation
Vertical
Horizontal
Process Data
Duplicate last case
Add new case
General
Remove case
Known Properties
Liquid Flowrate
Liquid Velocity
Gas Flowrate
Gas Flowrate + Density
Gas Velocity
Gas Velocity + Density
Case
Temperature
(T)
ᵒC
ᵒF
K
Density
(ρ
f
)
kg/m³
lb/ft³
lb/in³
Mass Flowrate
Volumetric Flowrate
(W)
kg/h
kg/s
lb/h
lb/s
Assessment
Assess
Show Assessment Details
